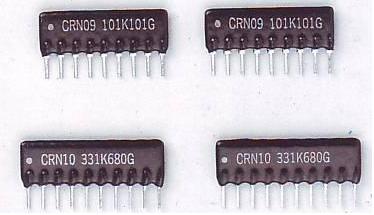

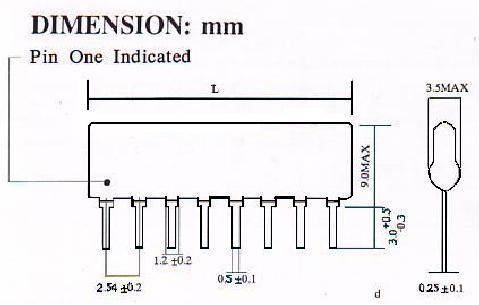

C-R NETWORKS-----------------------------------------------------------------

	No of pins
mW/ Package	5	6	7	8	9	10	11	12
mW/ Package	500	625	750	875	1000	1050	1150	1250

	Resistor	Capacitor
Mam. Operating Voltage	50V
Range	22Ω ~ 1MΩ	10㎊ ~ 0.1㎌
T . C . R	±100ppm/℃ ±100ppm/℃	NPO, X7R, Z5U
Tolerance	±1%(F),±2%,±5%(J)	±5%,±10%,±20%, +80%~20%
Operating Temp. Range	-25℃ ~ +85℃
Storage Temp Range	-55℃ ~ +125℃

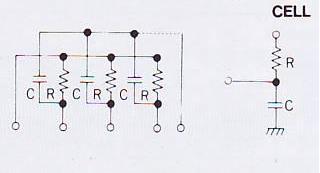

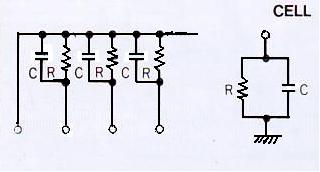

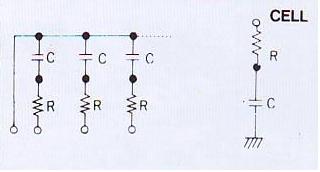

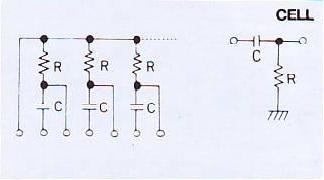

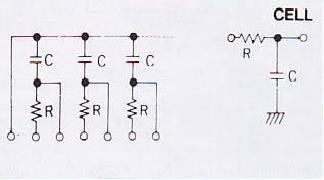

CIRCUITS CONSTRUCTION

A	B	C

D	E	F

N	SPECIAL REQUIREMENT ARE AVAILABLE When placing your order, please specify the following items which according to your application needs.For details, please refer to the respective specification. 1.Series-part height and pin pitch. 2.Circuit 3.Number of pins 4.TC,Tol. Capacitance for Capacitor 5.Resistance, Wattage, Tol. for Resistor

HOW TO ORDER

CR

A

09

666

SERIES

CIRCUITS

NUMBER
OF PIN

REF. NO.

A STYLE
B
C
D
E
F
N

05 = 5pin
06 = 6pin
07 = 7pin
08 = 8pin
09 = 9pin
10 = 10pin
11 = 11pin

ELECTRICAL SPECIFICATION --- CAPACITORS

ITEM ＼ TC	NPO	X7R	Z5U
Capacitance	10㎊ ~ 1000㎊	220㎊ ~ 0.22㎌	1000㎊ ~ 1㎌
Capacitance Tolerance	J . K	K . M	M . Z
Dissipation Factor	Max. 0.15%	Max. 2.5%	Max. 5%
Temp. Coefficient	±30ppm/℃	±15%	+22, -56%
Operation Temp.	-25℃ ~ +125℃	-25℃ ~ +125℃	+10℃ ~ +85℃
Dielectric Test	3 x Rated Voltage	2.5 x Rated Voltage
Rating Voltage	50V

ELECTRICAL SPECIFICATION --- RESISTORS

Resistance Range	10Ω ~ 1MΩ
Resistance Tolerance	±2%, 1% (±0.5% is available upon request)
Temperature Coefficient	±100ppm/℃
TCR Tracking	±50ppm/℃
Operating Voltage	50V Max.
Operating Temperature	-55℃ ~ +125℃
Power Rating	Power per resistor is 0.125W at 70℃

CHARACTERISTICS

Short Time Overload	Max. △R = ±0.25%
Resistance to Soldering Heat	Max. △R = ±0.25%
Insulation Resistance	IR = 10,000MΩ Min.
Terminal Strength	Max. △R = ±0.25%
Terminal shork	Max. △R = ±0.5%
Solderability	Min. 95% Solder Coverage
Moisture Resistance	Max. △R = ±0.5%
Load Life	Max. △R = ±1%
Mechanical Shork	Max. △R = ±0.25%
Resistance to Solvents	Marking Remains Legible
